Custom CrMo Bicycle Frame Manufacturing | OEM Case Study

See how a custom CrMo bicycle frame moved from drawing review and sampling to volume production. Explore frame details and OEM development capabilities.


Custom CrMo Bicycle Frame: From Drawing to Production

A real OEM project developed through engineering review, sampling and volume production.

Request a Frame Review





A Custom CrMo Frame Built for Production
This CrMo frame was developed around the project’s geometry, structural and finish requirements, then validated through sampling before volume production.

The finished frame shown here is an actual project result, not a rendering or concept model.

Frame
Custom CrMo Bicycle Frame
Material
CrMo4130 Steel
Development
Custom Specification & Geometry
Finish
ED coating + Custom Paint + Custom Logo
Project Stage
Volume Production
Frame Details & Construction
A closer look at the frame structure, tube junctions and functional details carried through from development to production.

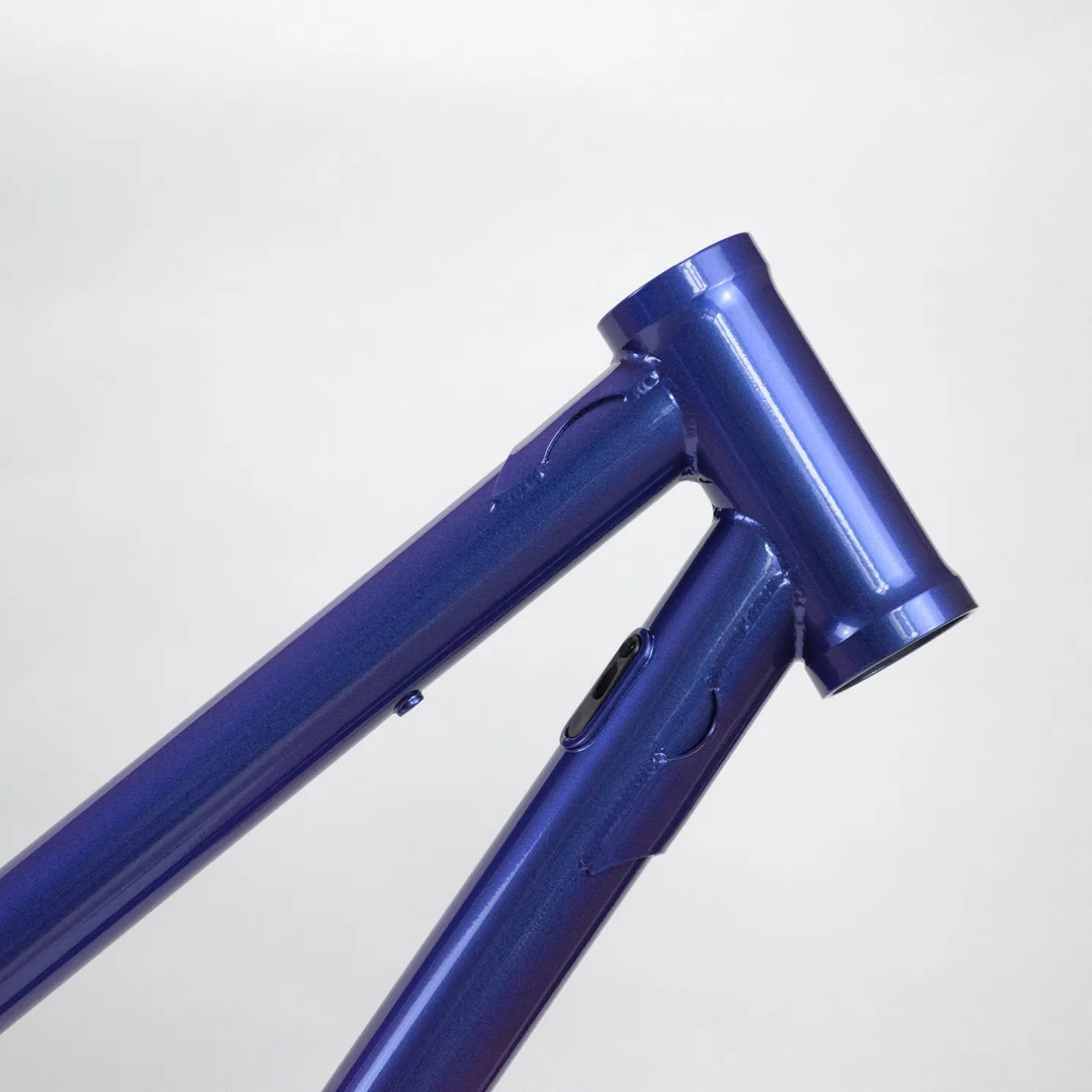

  • Head Tube Junction

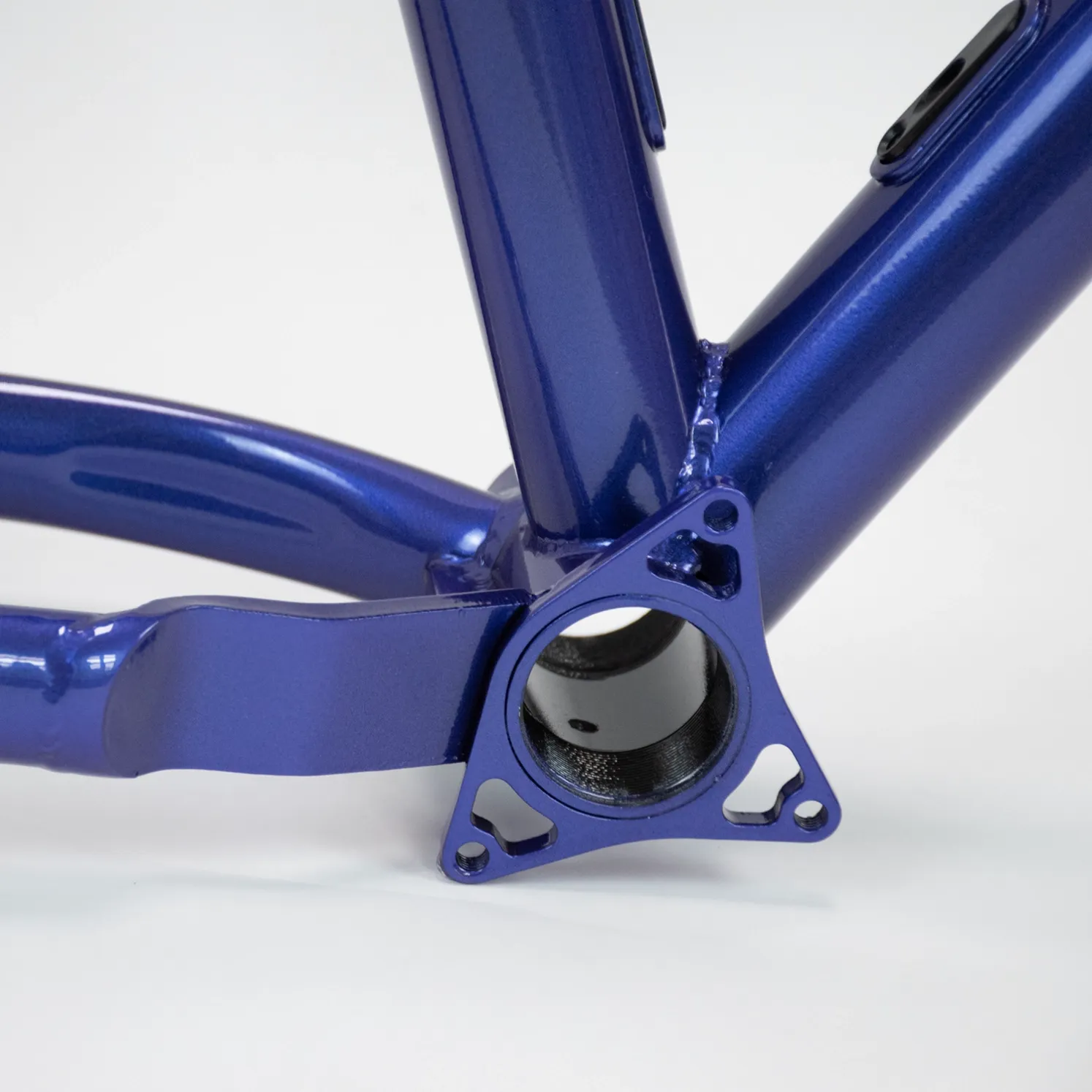

  • Bottom Bracket

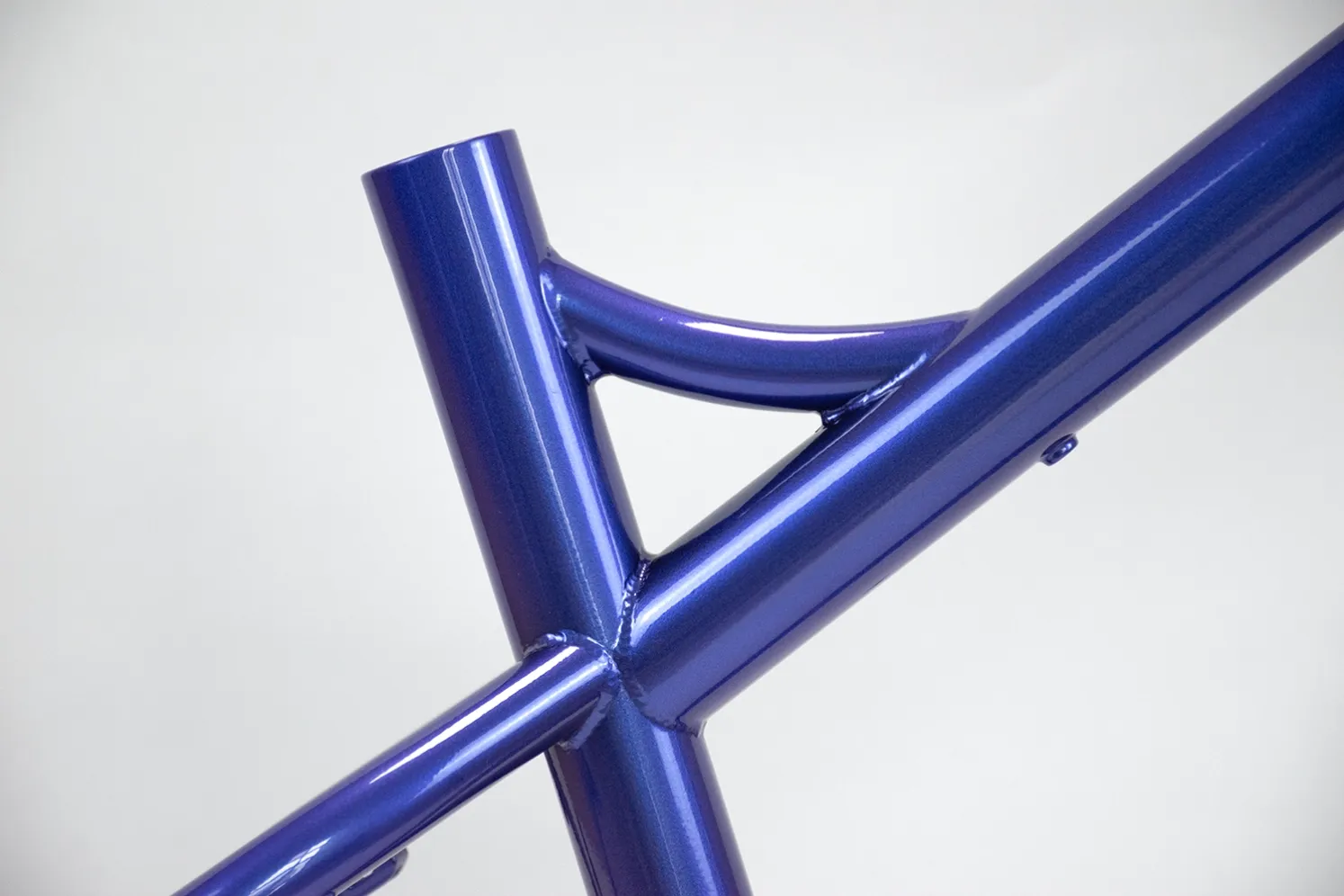

  • Seat Cluster

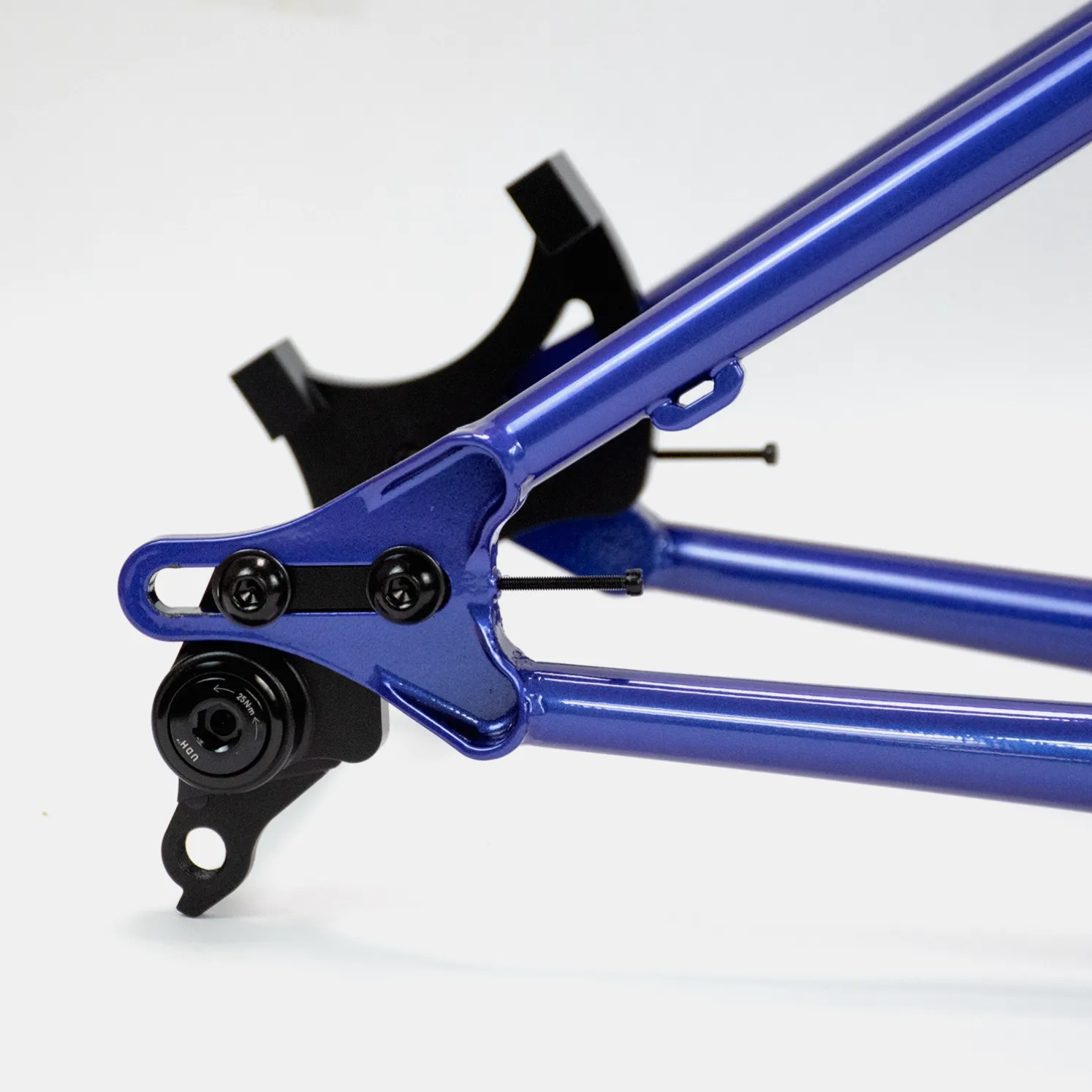

  • Rear Dropout

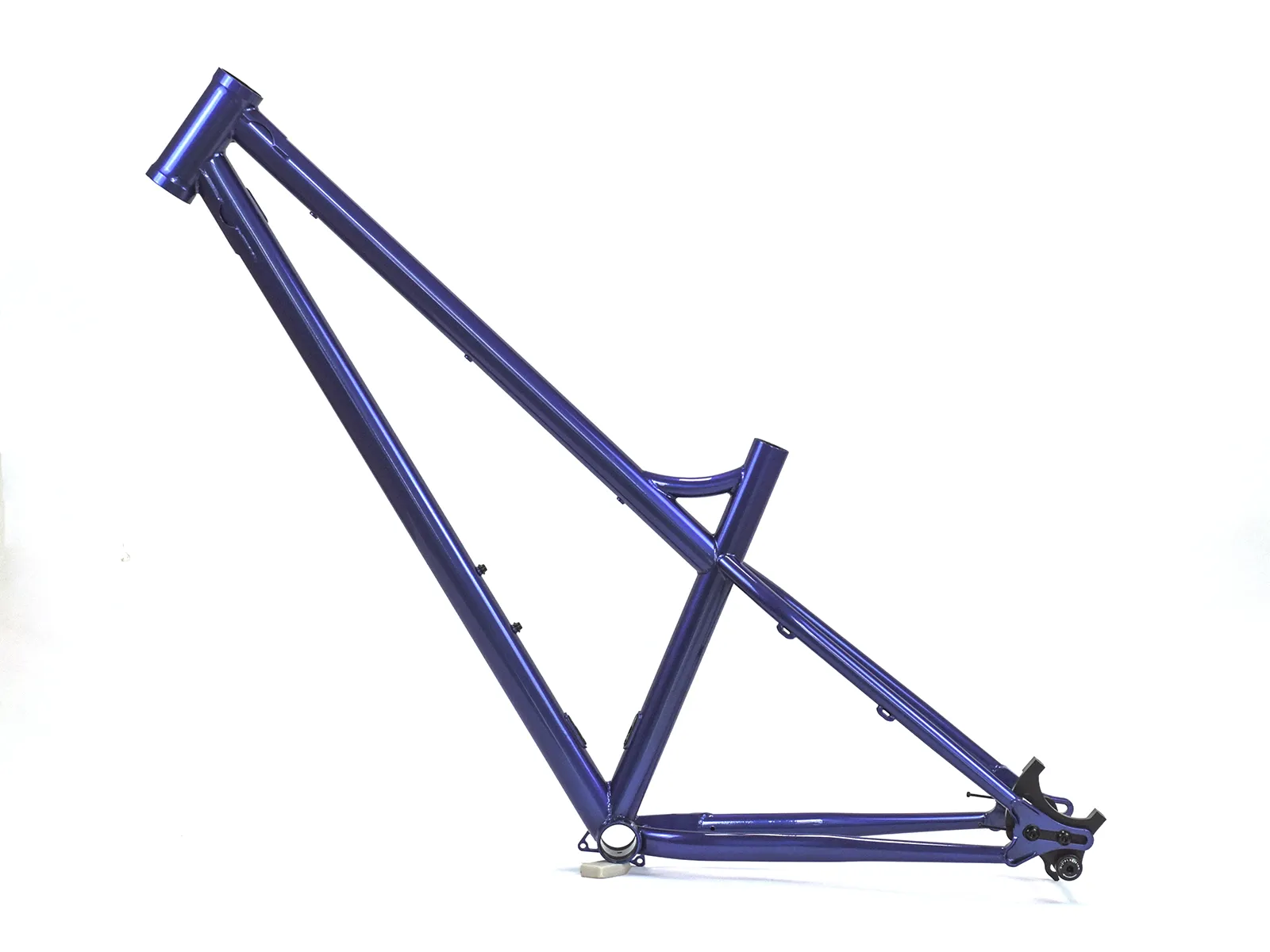

See the Actual Production Frame

Have a CrMo Frame Project?
Send us your drawing, geometry or reference frame. We can review the requirements and discuss the next step toward sampling and production.
Request a Frame Review
